Weatherproof
Features
- Light grey enclosure with yellow & Red handle.
- Easy connection
- Good resistance against many chemicals.
- Cable Outlets M Sized threaded knock-outs.
- Handle Pad lockable in “O” position as standard.
- Knock out for padlock in “I” position.
- Excellent insulating properties and U.V resistance.
- Self-Extinguishing material, Glow wire 850°C
Weatherproof
Play Video
Weatherproof
Weatherproof
Exit Zoom
Close Video
Weatherproof
Features
- Light grey enclosure with yellow & Red handle.
- Easy connection
- Good resistance against many chemicals.
- Cable Outlets M Sized threaded knock-outs.
- Handle Pad lockable in “O” position as standard.
- Knock out for padlock in “I” position.
- Excellent insulating properties and U.V resistance.
- Self-Extinguishing material, Glow wire 850°C
Description

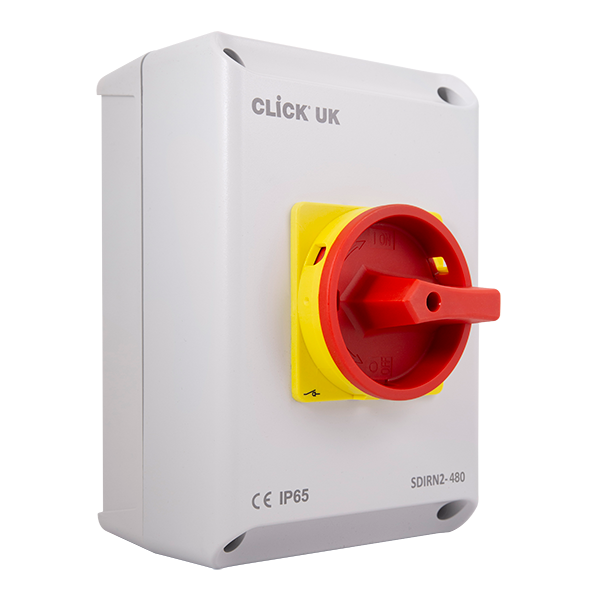

IP65 Enclosure type switch Isolators, disconnectors and load break switches have a wide operating temperature range -5°C to 50°C and are perfect for Isolating, switching ON & OFF when connected, emergency switching and functional switching.
IP65 Enclosure type switch Isolators, disconnectors and load break switches have a wide operating temperature range -5°C to 50°C and are perfect for Isolating, switching ON & OFF when connected, emergency switching and functional switching.
Tech Specs
Rated Voltage (V AC)
415
Switching Poles
4
Rated Current (A)
80
Dimensions (mm)
176(W) x 116(H) x 101(D)
Terminal Capacity (mm²)
6.0 to 16.0
Ingress Protection
IP65
Temp Rating (°C)
-5 to +50
* For more technical information, please
download our technical data below.
download our technical data below.
